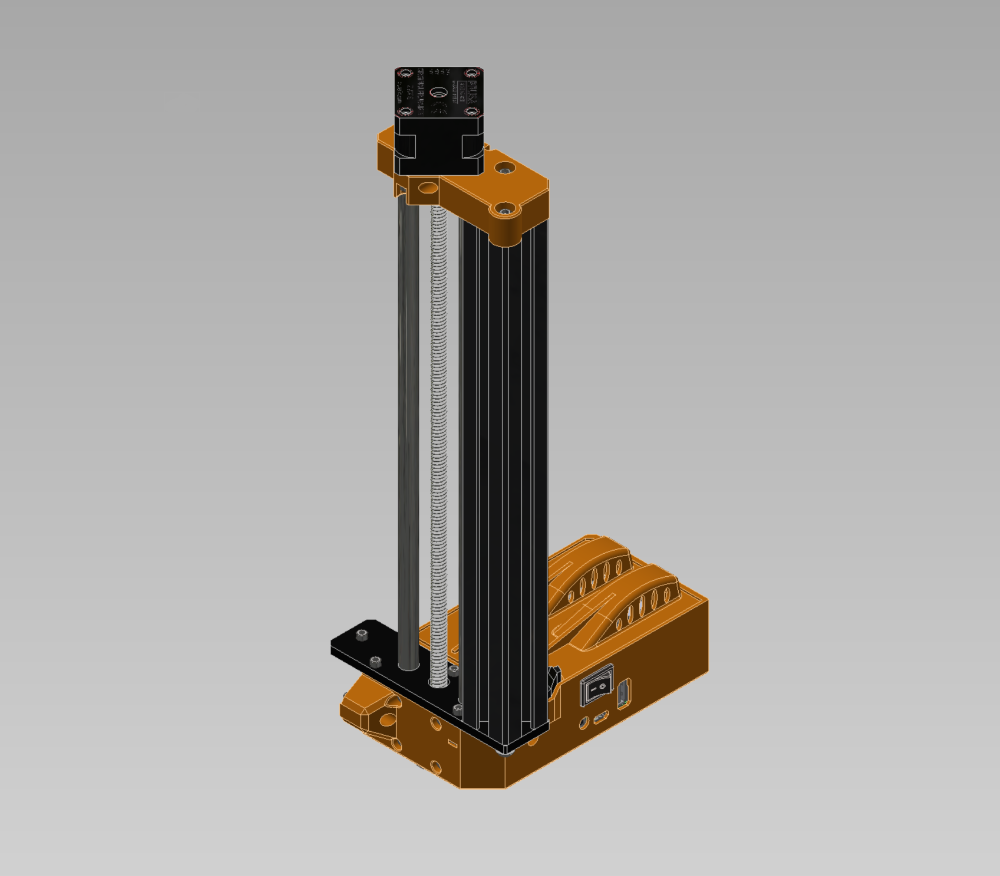

z-axis

PRINTED PARTS

Name Qty
MINI-z-bottom 1
MINI-z-bottom-cover 1
MINI-z-bottom-cable-cover 1
MINI-z-top 1

FASTENERS

Name Qty
M3x8 screw 4
M3x12 screw 4
M3x20 screw 10
M3x40 screw 1
M5x16r screw 4
M3n 4
M3nS 10

ELECTRICAL PARTS

Name Qty
MINI Buddy board v1.0.x 1
MINI power switch 1
MINI display cable 1
MINI Z-axis motor 1

CUSTOM PARTS

Name Qty
MINI Z plate bottom 1
MINI aluminium extrusion 289mm 1
MINI Z smooth rod 2
